Screen Stretching Solutions & Equipment
Screen Fabric Stretcher
Stretching structure in 4-side framework design, may be freely reassembled to various frame sizes.
Each side with multiple strong fabric clamps, each 12cm wide, may be freely slide-moved along rail; clamp ends in skew angle lined up side-by-side, leaving no missing clamping in-between, clamp jaws with tooth-profile rubber pad.
Clamp level 73cm from floor, ergonomically fit. Machine with casters for convenient move. Structure knock-down for export, reduces dimension/freight, easy to set up following screw hole positions for immediate operation.
Applicable models：
TY-MS45 (max. stretching area 1200x1500mm)
TY-MS56 (max. stretching area 1500x1800mm)
Grunig G-Stretch 202
Stretching Device
A cost-efficient first step into professional stretching
Modular extension possible in 250 mm (10 inch) increments
Pneumatic stretching with highest precision/reproducibility
Automatic pre-bowing of the screen frames
Simple adjustment of the frame profile height
DUPLEX clamps offering max. retention force
Grunig G-Stretch 202 Plus
Stretching Device
Pneumatic stretching with highest precision/reproducibility
Modular extension possible in 155mm and 250 mm (6 / 10 inch) increments
Stretching stroke per clamp is 125 mm (totally 250 mm per axis)
Automatic pre-bowing of the screen frames
Simple adjustment of the frame profile height
DUPLEX clamps offering max. retention force
Grunig G-Stretch 215
Stretching Machine
Maximum frame format 3000 x 3000 mm / 118 x 118 inch
Automatic pre-bowing of the screen frames
No contact between frame and mesh during stretching process
Pneumatic stretching with highest precision/reproducibility
A supporting board allows to stretch many frames at the same time
DUPLEX clamps sliding in V2A guideways
Grunig G-Stretch 270
Automatic stretching mechanism operating with the G-CHECK 2 measuring instrument from the lower mesh side
Telescopic and progressively adjustable size adjustment
Stretching in true alignment with the thread, without any mesh distortion
Optimal handling and the highest degree of precision
Automatic frame pre-bowing
No contact between the mesh and the frame during stretching
Stretching Machine
Grunig G-Stretch 275
Automatic stretching mechanism operating with the G-CHECK 3 measuring instrument from the lower mesh side
Stretching in true alignment with the thread, without any mesh distortion
Optimal handling and highest degree of precision
No contact between the mesh and the frame during stretching
Stretching & Glueing Systems
Grunig G-Stretch 281
Maximum stretching surface 4000 x 10000 mm / 157 x 394 inch
High yield with a minimum of mesh consumption
Remote control for all the stretching functions
Adjustable stretching speeds for warp and weft directions
Simultaneous handling of several screen frames
DUPLEX clamps sliding in V2A guideways
Stretching System

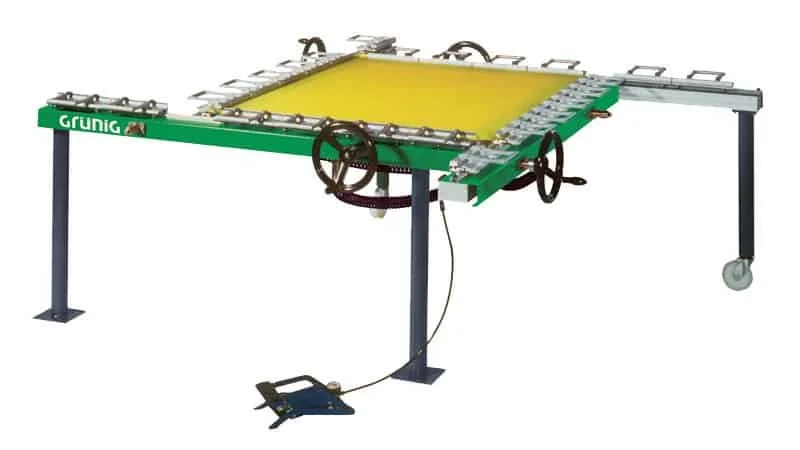

Grunig G-Stretch 210
Maximum frame format 3000 x 3000 mm / 118 x 118 inch
Instant adjustment of the machine size
Automatic pre-bowing of the screen frames
Locking function for pre-bowing of screen frames
No contact between frame and mesh during stretching process
DUPLEX clamps sliding in V2A guideways
Manual Stretching System
